Basic Info.
Model NO.
JN-HS1001
Surface Treatment
Without Treatment
Head Type
Round
Size
1/2"-12"
Body Material
SS304 , SS316L
Qualified Certificate for Seal
FDA
MOQ
1PCS
Raw Material
Forging or Casting
Processing Machine
LG Mazak CNC Machine
Acting Mode
Manual or Pneumatic or Electrical
Transport Package
Wooden Case
Trademark
JONENG
Origin
Wenzhou, China
HS Code
8481804090
Production Capacity
3000PCS/Year
Packaging & Delivery
Package Size
20.00cm * 30.00cm * 20.00cm
Package Gross Weight
2.000kg
Product Description

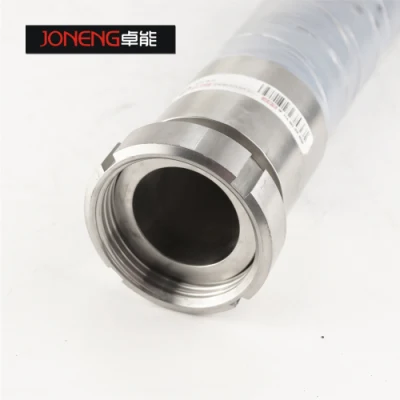

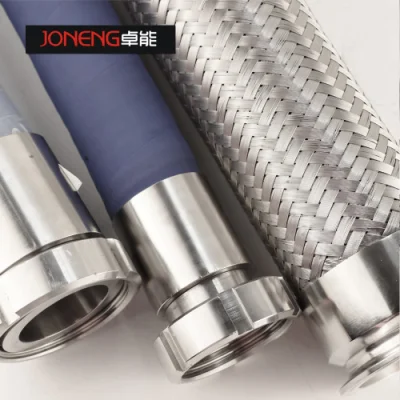

Stainless Steel Sanitary Food Grade Flexible Metal Reinforced Hose (JN-HS1001)
Application:Used in bio pharmaceutical,chemical,laboratory needs,food,medical treatment,water treatment,cosmetics manufacturing, petroleum, metallurgy, construction and shipping, semiconductor manufacturing industry,aerospace,ECT applications.
The product adopts advanced equipment manufacturing and follow the GMP standard,make the products in full compliance with FDA,VI,USP Class GMP standard.
1) Internal: SS304 Bellows or SS316L bellows
2) External: Single braid nets
2) External: Single braid nets
3) Assembly:As per customer requirements
4) Length: As per customer's requirement
5) Connection end: NPT or BSP threadd, quick disconnect cam or groove join, or floating flanges, and special union connection as per requirements
4) Length: As per customer's requirement
5) Connection end: NPT or BSP threadd, quick disconnect cam or groove join, or floating flanges, and special union connection as per requirements
6) Working Pressure: 190psi, depending on size
7) Working temperature: -200 ~ 400
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00tSclMnwRlvbD/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00UsoiBTdwkMqP/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
nominal pressure(PN Mpa) | Nominal diameter(D N mm) | Product number | Threaded connection size | The minimum bending radius | Test pressure | Burst pressure | Delivery length | |||
screw thread M | six parties S | static Rj | dynamic Rd | Ps Mpa | Pb Mpa | L mm | ||||
High pressure | 35 | 4 | JR4BL1 | M12*1.25 | 17 | ≥10DN | ≥2RJ | 1.5PN | 3PN | 150~1700 |
23 | 6 | JR6BL1 | M14*1.5 | |||||||
8 | JR8BL1 | M16*1.5 | 19 | |||||||
10 | JR10BL1 | M20*1.5 | 24 | 150~1600 | ||||||
12 | JR12BL1 | M22*1.5 | 27 | |||||||
21 | 15 | JR14BL1 | M24*1.5 | |||||||
16 | 18 | JR18BL1 | M30*1.5 | 36 | 160~1600 | |||||
20 | JR20BL1 | |||||||||
medium-pressure | 10 | 4 | JR4L3 | M12*1.25 | 17 | 4PN | 150~1700 | |||
6 | JR6L3 | M14*1.5 | ||||||||
8 | JR8L3 | M16*1.5 | 19 | 150~1600 | ||||||
10 | JR10L3 | M20*1.5 | 24 | |||||||
8 | 12 | JR12L3 | M22*1.5 | 27 | ||||||
15 | JR14L3 | M24*1.5 | ||||||||
18 | JR18L3 | M30*1.5 | 36 | 160~1600 | ||||||
6.4 | 20 | JR20L3 | ||||||||
25 | JR25L3 | M36*1.5 | 41 | 180~1600 | ||||||
4 | 32 | JR32L3 | M45*1.5 | 50 | 300~1600 | |||||
low pressure | 2.5 | 4 | JR4L1 | M12*1.25 | 17 | 150~1700 | ||||
6 | JR6L1 | M14*1.5 | ||||||||
8 | JR8L1 | M16*1.5 | 19 | 150~1600 | ||||||
10 | JR10L1 | M20*1.5 | 24 | |||||||
1.6 | 12 | JR12L1 | M22*1.5 | 27 | ||||||
15 | JR14L1 | M24*1.5 | 160~1600 | |||||||
18 | JR18L1 | M30*1.5 | 36 | |||||||
20 | JR20L1 | 180~1600 | ||||||||
1 | 25 | JR25L1 | M36*1.5 | 41 | ||||||
32 | JR32L1 | M45*1.5 | 50 | 300~1600 |
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00loDiSYWGaTkM/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00PKiIVUGEOcfd/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00QKPDiltJJkRH/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00USclvzArEMoH/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
Hose We Manufacture:
Stainless Steel Hose | Stainless Steel Smooth hose |
Stainless Steel Threaded hose | |
Stainless Steel Pharmaceutical grade braided hose | |
Stainless Steel Platinum vulcanized four layer braided hose | |
Stainless Steel Platinum vulcanized peristaltic pump hose |
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00STslAIKWErfB/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
JoNeng was established in July 2007, located in Wenzhou, China. Totally around 100 nos of workers and the factory Covers 6800m2.
We have three manufacturing factories under Joneng enterprise. Jiayuan is especially into elbow, tee, reducer fittings in both sanitary grade and schedule grade ; Lingdong is focusing into ferrule, union, sight glass, butterfly valves which are produced from CNC machines; Ezo is into manhole covers and small tanks.
We have three manufacturing factories under Joneng enterprise. Jiayuan is especially into elbow, tee, reducer fittings in both sanitary grade and schedule grade ; Lingdong is focusing into ferrule, union, sight glass, butterfly valves which are produced from CNC machines; Ezo is into manhole covers and small tanks.
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00jaZimoKEngfM/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00SaKWJjsgrufC/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
We mainly manufacture:
Stainless steel butterfly valves, ball valves, check valves, CPM valves, diaphragm valves..;
Stainless steel sanitary & Industrial grade elbow, tee, reducer, ferrule, union fittings ;
Stainless steel sight glass, spray ball, manhole cover, flanges,strainers, filters,pipe clamps;
Stainless steel centrifugal pumps, CIP pump, emulsifying pump, rotary pumps;
Stainless steel butterfly valves, ball valves, check valves, CPM valves, diaphragm valves..;
Stainless steel sanitary & Industrial grade elbow, tee, reducer, ferrule, union fittings ;
Stainless steel sight glass, spray ball, manhole cover, flanges,strainers, filters,pipe clamps;
Stainless steel centrifugal pumps, CIP pump, emulsifying pump, rotary pumps;
The products are produced according to SMS, DIN, AS, BS, BPE, JIS,JIS, ISO,ANSI B16.5, ASME and other standards. They also can be customized. Our products have been exported to dozens of
countries and regions such as Europe, America, Middle East,Australia,Turkey, Iran,Thailand... more than 100 countries.
Joneng is approved with CE, PED, ISO 9001 quality management system. The products are complied with FDA certificate.
The product can be widely used in Dairy, Beer, Wine,Beverage, Food, medicine, Chemical,Water Treatment and other fields.
JoNeng always insist in "What we say, What we do". Our goal is to make a centennial factory.
countries and regions such as Europe, America, Middle East,Australia,Turkey, Iran,Thailand... more than 100 countries.
Joneng is approved with CE, PED, ISO 9001 quality management system. The products are complied with FDA certificate.
The product can be widely used in Dairy, Beer, Wine,Beverage, Food, medicine, Chemical,Water Treatment and other fields.
JoNeng always insist in "What we say, What we do". Our goal is to make a centennial factory.
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00SQKWmwZFQzYv/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00yQKWmRjMfzfe/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
3 PMI machines to inspect the chemical for raw materials, semi finished products and final products to avoid mixing issue.
1 nos of roughness machine to check the surface of the products.
- We keep huge stock for pipe fittings( stainless steel elbow, tee, reducers) , union, ferrules, butterfly valves, check valves, ball valves....so we can delivery the goods in fast way.
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00OtjiALKgArGv/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00yEKVJqZWLzfM/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
24 hours' action for quality complaints
For the stainless steel parts, we take 3 years guarantee without any excuse.Any quality complaints for our valves and fittings, please contact with us, a 24 hours' action is required. √17 years experience
√6800m2
√100 employees
√100+countries
√1000+ partners
√6800m2
√100 employees
√100+countries
√1000+ partners
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00OtShdjZEfuYB/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00yQjiAwsKQpGB/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
![Stainless Steel Sanitary Water High Pressure Triclover Flexible Flex Metal Exhaust Braided Reinforced Corrugated Rubber SAE 100 R14 Pipe Tube Hose (JN-HS1001)](http://img9.grofrom.com/www.dijiapartgroup.com/226f3j00JaslARKWEuUB/Stainless-Steel-Sanitary-Water-High-Pressure-Triclover-Flexible-Flex-Metal-Exhaust-Braided-Reinforced-Corrugated-Rubber-SAE-100-R14-Pipe-Tube-Hose-JN-HS1001-.webp)
Production Lines | Stainless steel sanitary pipe fittings' line, machining line, sanitary manhole line, | |
Product Range | Sanitary butterfly Valve, sanitary diaphragm valve, sanitary pipe fittings, union, ferrule, sight glass, manhole cover, safety valve, sampling valve... | |
Year Established | 2007 | |
Factory Size in Square Meters | 5000M2 | |
NO. OF TOTAL STAFF | 130 | |
Production Capital | 8 000 000 USD | |
Detail capacity | Manhole covers | 12000nos |
Pipe fittings | 150000nos | |
Ferrules, unions, connectors | 200000nos | |
Diaphragm valves | 15000nos | |
Butterfly valves | 20000nos | |
Investment in Manufacturing Equipment | 750000USD | |
Details of equipment | For machining parts 29 nos of LG Mazak CNC Machines 4 nos of local CNC machines 2 nos of automatic CNC center 12 nos of plain lathe For pipe fittings 4 nos of press 3 nos of cutting machine 3 nos of chamfering machine We also have the following quipments 4 nos of polishing machine 12 nos of grinding machine 3 nos of laser marking machine 3 nos of pressure testing machine 1 nos of temperature testing machine 3 nos of spectro instrument 1 nos of surface roughness device | |
Primary Competitive Advantages | Strict inspection, honest business way, fast revert on order problem | |
Stocked materials | Big quantity for raw forging of butterfly valve, diaphragm valve, ferrule, union, adapters, pipe fittings, clamps, sight glass, safety valve, manhole cover, | |
OEM Services Provided | Yes | |
Design Service Offered | Yes | |
Sales Volume | 6 000 000 USD | |
Export Percentage | 80% | |
MAIN MARKET | USA, Germany, Hungary, Canada, Thailand, Holland, England, South Africa, Indonesia, Saudi, India, New Zealand, Australia, Middle East... | |
Own Brand Name | JoNeng |
FAQ:
1. Are you a trading company or factory?
We are a manufacturer factory and we also have our own exporting license.
2. Do you have certificate ?
Yes, ISO, FDA, LFGB, CE, PED certificate . We also have some patents in design.
3. How do you control the quality?
In quality control ,the most important is to avoid material mixing .
In our factory , 3 spectro PMI machines are used in raw material warehouse, production plant, dispatch plant.
Pressure inspecting machine, PMI machines, RA roughness spector, hardness testing machine..... all machines help in inspection.
2 staff inspect during production in different sections
5 staff inspect the finished productions to avoid shortage, poor quality, mixing chemical....
4. If there is any quality problem, how do you solve it?
We are very proud that we never make one customer leave us. We are not 100% perfect, there is some quality problem.
Normally replacement, or compensation, or resend goods to customers as per the condition. To be discussed as per condition.
5. How long is your delivery time?
For normal products in 7-10 days; for bulk order, in 15-25 days. It depends.
6. Warranty time?
3 years warranty for all of our stainless steel products. Gaskets or the easy broken parts are not included due to the different application for customers.
7. Why trust in us ?
14 years in this industry . It makes us professional .Good credit in this market.
All of our machines are the assurance of our responsibility.
8. Free sample ?
Free samples can be provided for first cooperation under sincere cooperation.
9. What is the MOQ?
1pcs MOQ is welcome for starting cooperatoon
10.Material certificate ?
Material certificaite, mill certificate, pressure testing certificate, roughness certificate, measure certificate, RT certificate,... can be available, please declare when inquiry us.
11. More questions are appreciated.
